PRODUCT DETAIL

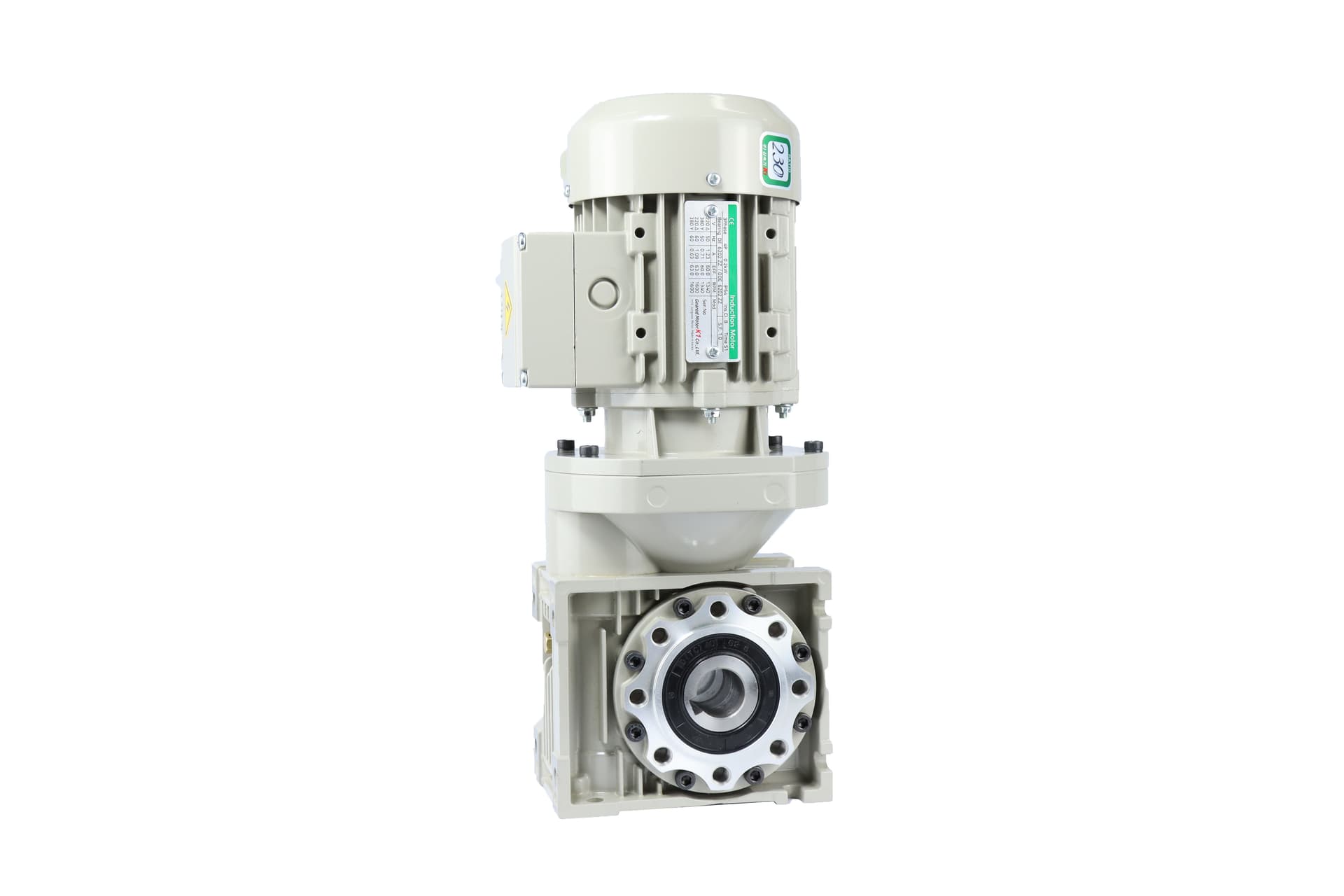

1/4 HP (0.2 kW), 1/2 HP (0.4 kW) RK50HWT Helical Worm Three-phase/Single-phase
Specification
Voltage: 220V/380V, 440V, 480V
Speed (RPM) : 1800(1500)
Frequency : 60 Hz (50 Hz)
Poles : 4P
Enclosure : Fully enclosed
Rating : Continuous
Insulation Class : F
Starting Method : Direct starting
Lubrication : Grease
Service Factor : 1.0-2.0
Weight(kg) : 20-25
Gear Ratio : 1/135 - 1/680
Speed (RPM) : 1800(1500)
Frequency : 60 Hz (50 Hz)
Poles : 4P
Enclosure : Fully enclosed
Rating : Continuous
Insulation Class : F
Starting Method : Direct starting
Lubrication : Grease
Service Factor : 1.0-2.0
Weight(kg) : 20-25
Gear Ratio : 1/135 - 1/680
Download File
Ratio of Gearhead
| Reduction Gear Ratio | 135 | 150 | 170 | 190 | 225 | 300 | 500 | 680 | |
| Output r.p.m. | 60 Hz | 13 | 12 | 10 | 9 | 8 | 6 | 4 | 2.5 |
| 50Hz | 12 | 10 | 9 | 8 | 7 | 5 | 3 | 2.5 | |
Gear ratio는 맞춤사양으로 변경이 가능합니다
