PRODUCT DETAIL

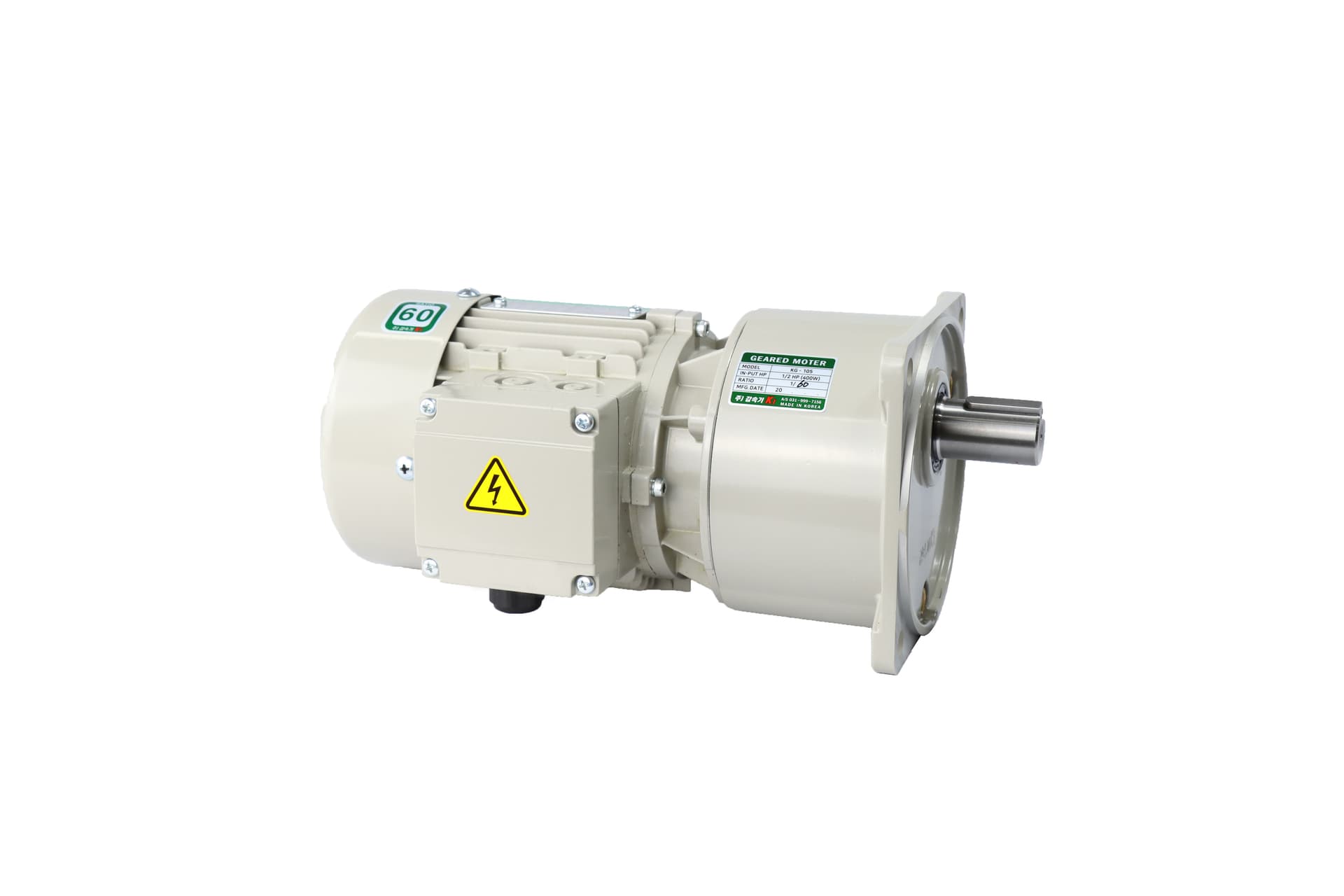

1/2 HP (0.4 kW) RK105VT Three-phase (Vertical)
Helical Geared Motor, 105 Frame
Specification
Voltage: 220V/380V, 440V, 480V
Speed (RPM) : 1800(1500)
Frequency : 60 Hz (50 Hz)
Poles : 4P
Enclosure : Fully enclosed
Rating : Continuous
Insulation Class : F
Starting Method : Direct starting
Lubrication : Grease
Service Factor : 1.4-2.0
Weight (kg) : 16
Gear Ratio : 1/5 - 1/120
Speed (RPM) : 1800(1500)
Frequency : 60 Hz (50 Hz)
Poles : 4P
Enclosure : Fully enclosed
Rating : Continuous
Insulation Class : F
Starting Method : Direct starting
Lubrication : Grease
Service Factor : 1.4-2.0
Weight (kg) : 16
Gear Ratio : 1/5 - 1/120
Download File
Ratio of Gearhead
| Reduction Gear Ratio | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 75 | 100 | 120 | |
| Output r.p.m. | 60 Hz | 350 | 170 | 116 | 88 | 58 | 40 | 35 | 30 | 23 | 18 | 15 |
| 50Hz | 290 | 145 | 97 | 73 | 48 | 36 | 29 | 14 | 19 | 14 | 12 | |
